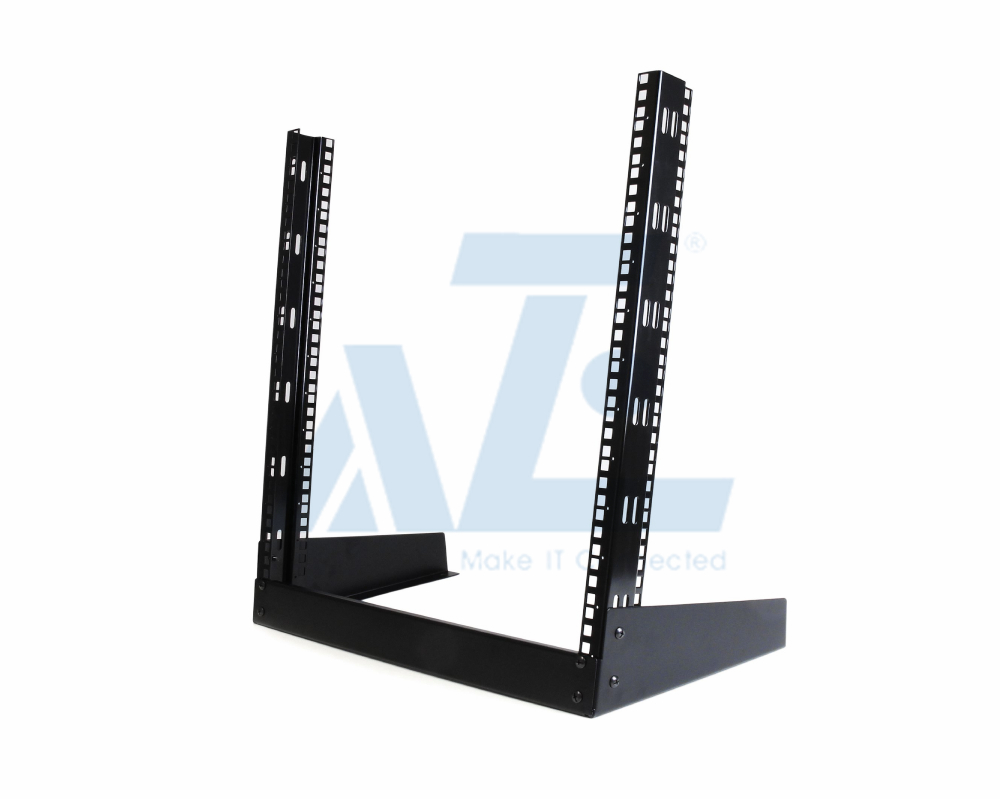

12U Desktop Rack - 19 in. 2-Post Open Frame Rack
Model : ROF2P12D
This 2-post desktop rack provides 12U of storage space for mounting smaller A/V and IT equipment.
- 12U Open frame design
- Secure the rack directly to the floor or rolling with casters.
- Secures 12U of 19 in. rack equipment up to 36 in. deep
- Easy to assemble with included hardware
- Free-standing design rests on rubber feet
- Rests on desktop, floor or counter at your immediate workspace
12U Desktop Rack - 2-Post Open Frame Rack
ROF2P12D Features
| Key Features | |
| Rack Height | 12U |
| Rack Width | 19" |
Includes: Mounting hardware
You can mount equipment at a fraction of the cost of conventional racks with this 2-Post open rack, The lightweight rack is engineered to meet EIA-310 rack-mount standards and is constructed of solid steel, ensuring a sturdy and safe mounting solution for your mission-critical equipment.
Features & Benefits
| Compatiblity | |
| Rack Systems Compatible | Compatible with a variety of AZE's rack accessory products to provide the ability to create a complete rack system |
| EIA-310 19in Rack Mounting Compatibility | Compatibility with all EIA-310 compliant 19" equipment. |
| High capacity cable management systems options | Compatibility with high capacity cable management that can attach to rack mounting rails inside enclosures aligning with U-space marks and provide channels for cabling. |
| Agility | |

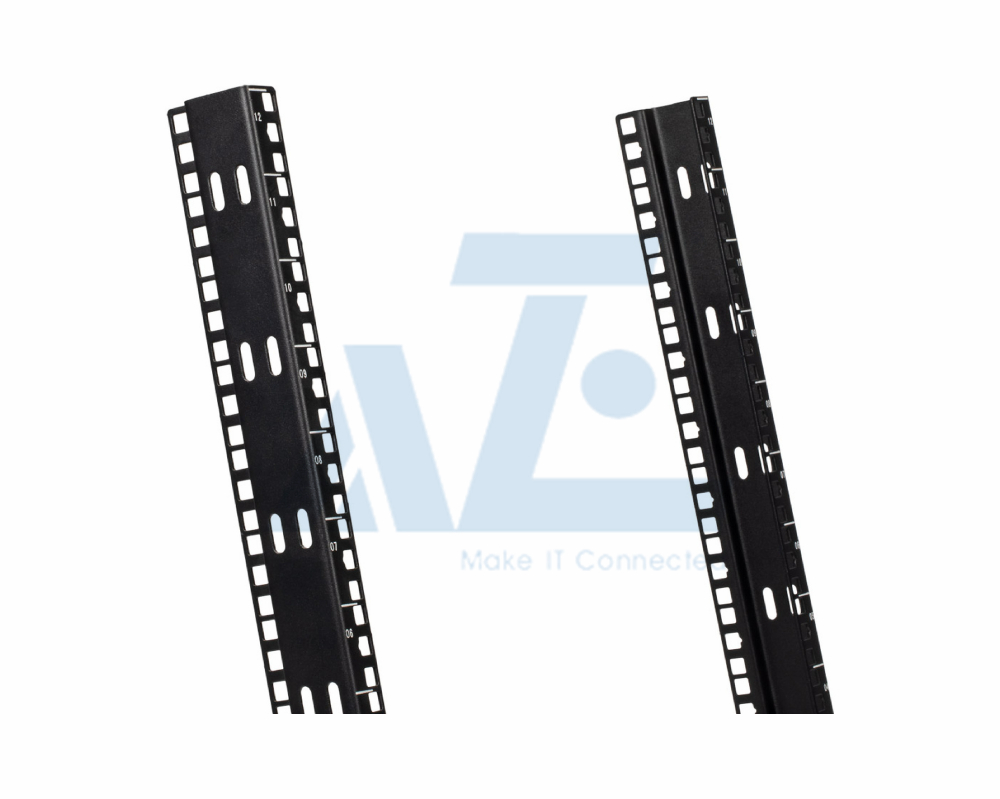

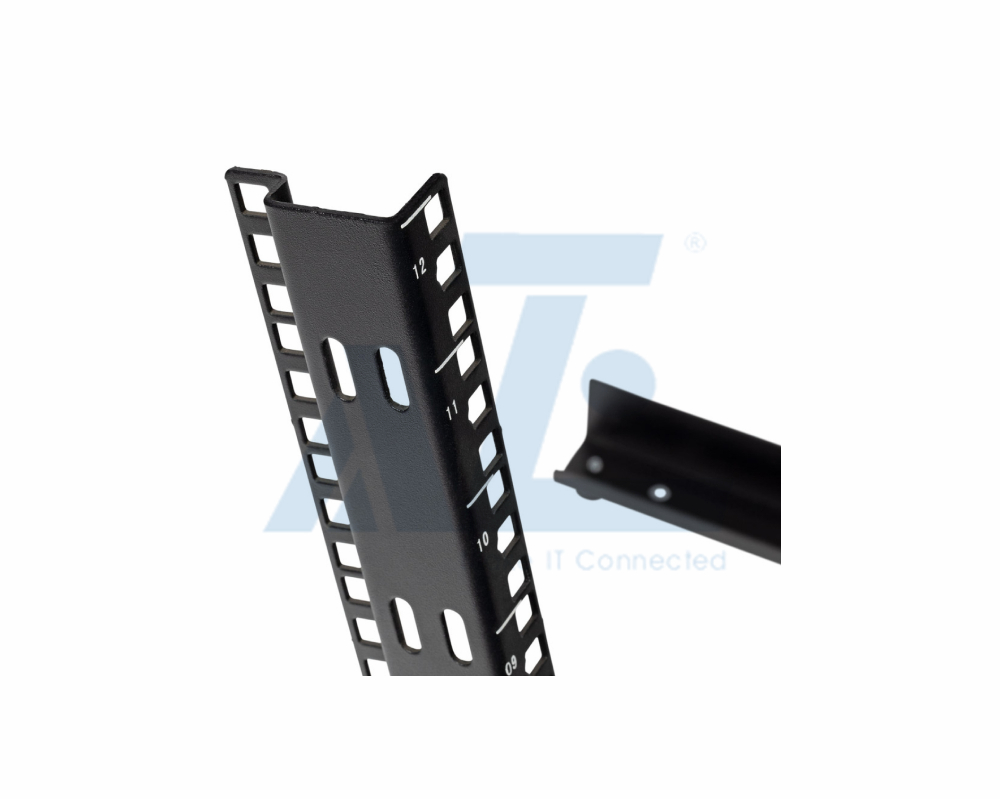

| Rack Mount Hole | The mounting hole can be M6 square holes or #12-24 tapped holes |
| Floor mounting or rolling options | Pre-drilled holes to secure the rack directly to the floor or rolling with the 2" heavy duty castors options |
| Flat packed shipping | Easy to assemble and saving cost for shipment |
Specification
| Physical | |
| Color | Black |
| Unit Dimensions (WxDxH) | 23.63inches x 23.63inchesx12U |
| Unit Weight | 50.3lbs. |
| Shipping Dimensions(WxDxH) | 6.3inchesx25.0inches x14.2inches |
| Shipping Weight | 58.2lbs. |
| Weight Capacity (static load) | 100lbs. |
| Environmental | |
| Protection Class | IP20 |
| Certifications | |
| Approvals | DIN41491, DIN41494, EIA/ECA-310-E, IEC 294-2, RoHS |
| Safety | CE |
| Warranty | |
| Standard warranty | 1 Year |
How to Order
| MODEL | Dimension | Description |
| ROF2P08D | 503mmW x 300mmD x 8U | 8U 19in Desktop Open Frame 2 Post Rack |
| ROF2P12D | 503mmW x 300mmD x 12U | 12U 19in Desktop Open Frame 2 Post Rack |
| ROF2P13AL | 515mmW x 120mmD x 13U | 2-Post 13U Open Frame Rack,Aluminum,#12-24 Threads |
| ROF2P25AL | 515mmW x 120mmD x 25U | 2-Post 25U Open Frame Rack,Aluminum,#12-24 Threads |
| ROF2P45AL | 515mmW x 120mmD x 45U | 2-Post 45U Open Frame Rack,Aluminum,#12-24 Threads |
-
Shipping Option: Flat pack
-
Vertical rail types: 19" or 23" rails, with mounting holes options of #10-32 threaded holes, #12-24 threaded holes or M6 square holes
-
Floor mount with options: 2" castors or 3" HD castors optional
-
A wide range of server rack accessories compatability
-
White (RAL7010) or black(RAL9005) options.
Options
Metered rack PDU, ZeroU, Three Phase, 400V/63A, (18) lockable C13 & (3) lockable C19
1U rackmount basic rack PDU, 120V/15A, (8) NEMA 5-15R outlets
1U 19" Black Modular Toolless Airflow Management Blanking Panel
42U Server Rack Cabinet 800mm Wide x 1200mm Deep with Side Panels
2U Rack Mount Fiber Optics Enclosure with LGX Adapter Plates or MTP / MPO Cassettes
1U Rackmount 4 Port 15.6inch FHD LCD KVM Console
1U Cantilever Fixed Shelf-14inch
Airflow Management Blanking Panel Kit (1U, 2U, 4U, 8U)
Application
This 2-Post desktop open frame rack stores and organizes 12U of 19-inch rack equipment in labs, test setups, network closets and other secure IT areas with limited floor space where you need easy access to equipment.
- Network switches
- Patch panels
- KVM Switches
It can save space in your SoHo (small office, home office) or server room, by placing equipment on desk or other surface, instead of taking up floor space.
