6 ft. (1.83 m) Vertical Cable Manager Double finger duct with cover & toolless mounting

6 ft. (1.83 m) Vertical Cable Manager Double finger duct with cover & toolless mounting

Model : RACABLEDUCTVRT1U

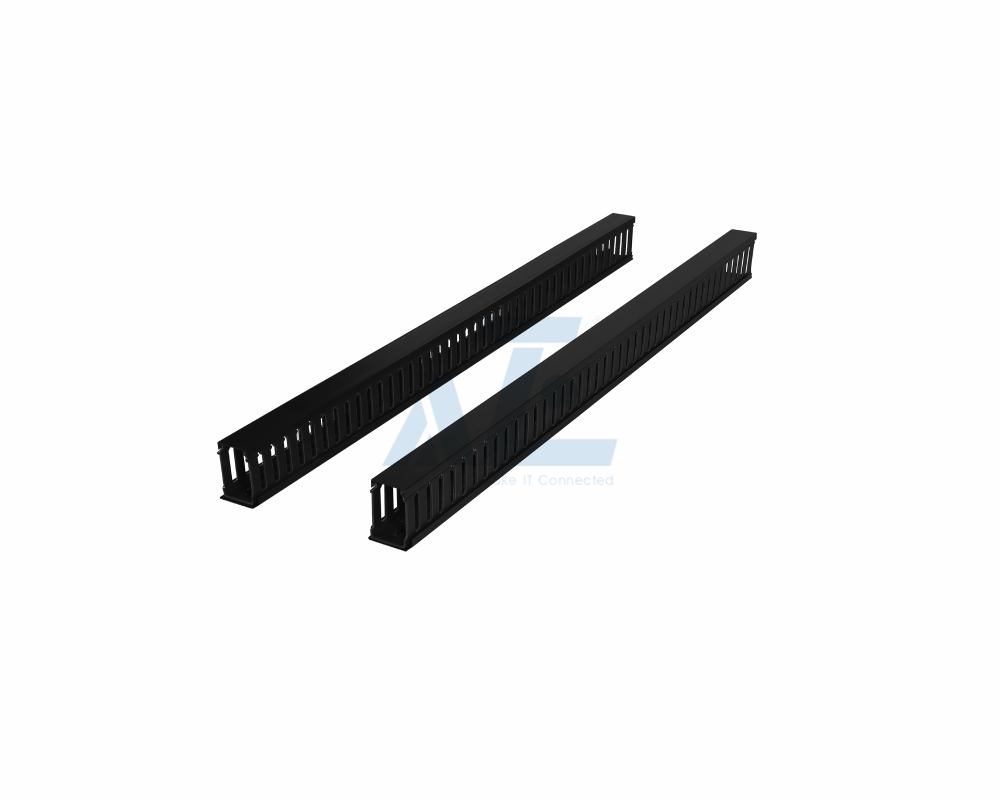

The vertical cable manager helps eliminate cable stress by organizing the cables within the server enclosure or open rack cabinet. The vertical cable manager (finger duct with cover) is 6-ft. (1.83 m) high and split into two 3-ft. (0.91 m) sections to allow for multiple installation options.

  • Helps eliminate cable stress for your rack enclosure cabinet.
  • Offers toolless button mounting


6 ft. (1.83 m) Vertical Cable Manager Double finger duct with cover & toolless mounting

RACABLEDUCTVRT1U Features

Key Features
Rack Height 0U vertical mount
Rack Mounting Width 19"



Features & Benefits

  • Vertical Cable Manager, 6-ft. (1.83 m), finger duct with cover
  • Split into two 3-ft. (0.91 m) section to allow for multiple installation options
  • Helps eliminate cable stress
  • Organizes cables within SmartRack enclosure or open rack
  • Toolless button mounts
  • Cold rolled steel with black finish

Specification

Physical
Color Black
Unit Dimensions (WxDxH) 3.45inches x 34inchesx 1.92inches
Unit Weight 3.28lbs.
Shipping Dimensions(WxDxH) 4.9inchesx 35.6inches x2.2inches
Shipping Weight  3.7lbs.

Certifications
Approvals EIA/ECA-310-E, RoHS
Safety CE

Warranty
Standard warranty 1 Year

How to Order

Model Dimension(H x D) Description Compatibility
Rack Enclosures Wall Mount Enclosures 2-Post (4-Post) Open Frame Racks
RAMCABLEDUCT1U 1U 1U Horizontal Metal Cable Manager - 16 Slots Duct with Cover
RAMCABLEDUCT2U 2U 2U Horizontal Metal Cable Manager - 16 Slots Duct with Cover
RAPCABLEDUCT1U 1U 1U Horizontal Plastic Cable Manager - Finger Duct with Cover
RAPCABLEDUCT2U 2U 2U Horizontal Plastic Cable Manager - Finger Duct with Cover
RACABLEDUCT1UHD 1U 1U High Capacity Horizontal Cable Manager - T-Finger Duct with Hinged Cover
RACABLEDUCT2UHD 2U 2U High Capacity Horizontal Cable Manager - T-Finger Duct with Hinged Cover
RAFPCABLEDUCT1U 1U 1U Horizontal ALL Plastic Cable Manager - Plastic Duct with Cover
RAFPCABLEDUCT2U 2U 2U Horizontal ALL Plastic Cable Manager - Plastic Duct with Cover
RAFPCABLEDUCT1UDS 1U 1U Horizontal ALL Plastic Cable Manager with Double-Sided - Plastic Duct with Cover
RAFPCABLEDUCT2UDS 2U 2U Horizontal ALL Plastic Cable Manager Double-Sided- Plastic Duct with Cover
RAMCABLERING1U 1U 1U Horizontal Metal Cable Manager - Metal Ring Type
RAMCABLERING2U 2U 2U Horizontal Metal Cable Manager - Metal Ring Type
RAPCABLERING1U 1U 1U Horizontal Plastic Cable Manager - Flexible Ring Type
RAPCABLERING2U 2U 2U Horizontal Plastic Cable Manager - Flexible Ring Type
RACABLEDUCTVRT1U 0U x 6Ft  6-ft. (1.8 m) Vertical Cable Manager - Finger Duct with Cover & Tool-less Mount, 2pcs per Pair
RACABLERINGVRT1U 0U x 6Ft  6-ft. (1.8 m)  Vertical Cable Manager - Flexible Ring Type & Tool-less Mount, 2pcs per Pair
RACABLETRAY3IN42U 3 inch x 21U 3-inch High Capacity Vertical Cable Manager for 42U 30 in. Wide Server Racks,2pcs per pair
RACABLETRAYM24 600mm Power Cable trough for 24 in. enclosures
RACABLETRAYM30 750mm Power Cable trough for 30 in. enclosures
RACABLETRAYN24 600mm Data cable partition for 24 in. enclosures
RACABLETRAYM30 750mm Data cable partition for 30 in. enclosures
RACABLELADDER6IN3M 6 inch x 3M 6 in. Wide Cable Ladder,1.5 meters per section, 2 sections per pair
RAMBRUSHVRT6  N/A Mounting Rails brush strips for 30 in. wide enclosures, qty.6
RAMSCHANNEL  N/A Horizontal cable side channel (18 in. to 30 in. adjustment) for routing cable front-to-back between the standard wide rack mounting rails
RALBAR N/A 19inch Rack Mount L-Shaped Tie Bars
RALBAR2INCH 19"x2" Lacing Bar Cable Management with 2 inch offset
RALBAR4INCH 19"x4” Lacing Bar Cable Management with 4 inch offset
RALBAR5INCH 19"x5" Lacing Bar Cable Management with 5 inch offset
RAWLBAR2INCH 19"x2" Horizontal Cable Lacing Bars with 2 inch Offset
RAWLBAR4INCH 19"x4” Horizontal Cable Lacing Bars with 4 inch Offset



***************Note********************


Options


Application

Rack Cable Management products organize cable runs in and outside the rack. Products include rings and ducts, vertical and horizontal cable managers, troughs and ladders.The cable manager helps eliminate cable stress for your server rack enclosure cabinet or outdoor cabinet enclosure,which can organize power or data cables within a rack or enclosure.
