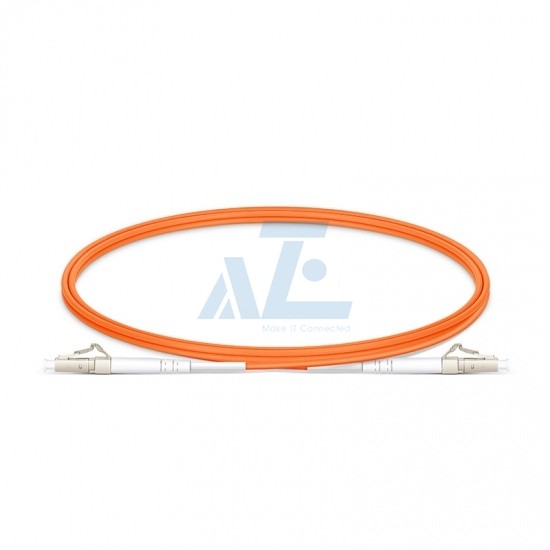

LC UPC to LC UPC Simplex OM1 Multimode Fiber Optic Patch Cable

LC UPC to LC UPC Simplex OM1 Multimode Fiber Optic Patch Cable

Model : OM1-LC-LC-SX-xM


The OM1 Multimode Fibre optic cables provide the connection from Ethernet 10Mbit/s to 10Gbit/s Gigabit Ethernet, they are the cost-effective way to replace your copper-based patch leads.

  • Connector Type: LC - LC
  • Polish Type: UPC / UPC
  • Fiber Count: Simplex
  • Fiber Mode: OM1 62.5/125μm
  • Length Options: 1M,3M,5M,10M,15M,20M,30M,50M or custom sizes


High Quality and Cost-Effective 62.5/125μm OM1 Multimode Fiber Optic Cable

Fiber patch cables are the thin, flexible fibres of glass that carry data, telephone conversations and emails high speed all over the world in a matter of seconds with much less interference than copper patch lead. Fibre Optic cables need less amplification to boost signals so they travel better over longer distances.

AZE's 62.5/125μm OM1 multimode fiber optic cable is suitable for fast Ethernet, gigabit Ethernet and fiber channel applications, such as in data center, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed.


Specification

Connector Type LC-LC Polish Type UPC/UPC
Fiber Count Simplex Fiber Mode OM1 62.5/125μm
Wavelength 850/1300nm 1G Ethernet Distance 280m at 850nm
Insertion Loss ≤0.3dB Return Loss ≥30dB
Fiber Grade G.651 Minimum Bend Radius 15mm
Attenuation at 850nm 3.0 dB/km Attenuation at 1300nm 1.0 dB/km
Cable Jacket PVC Cable Diameter 2.0mm
Polarity A(Tx) to B(Rx) Operating Temperature -20~70°C

How to Order


Options


Application

The 62.5/125μm OM1 multimode fiber optic cable is suitable for fast Ethernet, gigabit Ethernet and fiber channel applications, such as in data center, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed,ideal for connecting 100/1000BASE-SX transceivers etc. for fast Ethernet, gigabit Ethernet and fiber channel applications.

  • Cross-connect patching
  • Backbone application in building
  • Termination enclosure for equipment patching
  • Equipment to equipment patching
  • Supports high-speed multi-channel data, voice & video applications
