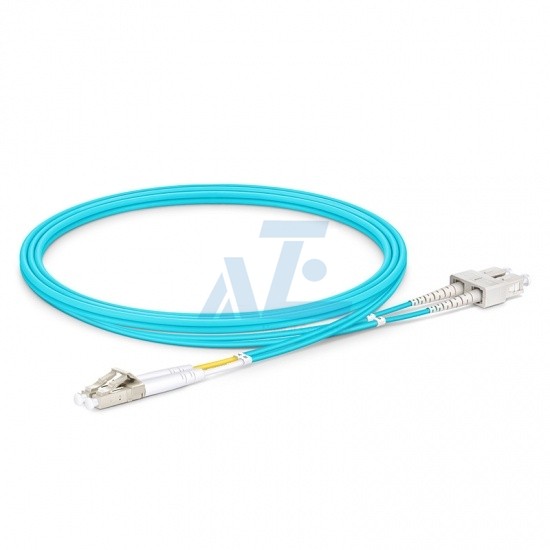

LC UPC to SC UPC Duplex OM4 Multimode Fiber Optic Patch Cable
Model : OM4-LC-SC-DX-xM
The OM4 Multimode Fibre optic cables provide the connection from Ethernet 10Mbit/s to 10Gbit/s Gigabit Ethernet, they are the cost-effective way to replace your copper-based patch leads.
- Connector Type: LC-SC
- Polish Type: UPC/UPC
- Fiber Count: Simplex
- Fiber Mode: OM4 50/125μm
- Length Options: 1M,3M,5M,10M,15M,20M,30M,50M or custom sizes
High Quality and Cost-Effective 50/125μm OM4 Multimode Fiber Optic Cable
Fiber patch cables are the thin, flexible fibres of glass that carry data, telephone conversations and emails high speed all over the world in a matter of seconds with much less interference than copper patch lead. Fibre Optic cables need less amplification to boost signals so they travel better over longer distances.Single mode Fiber Optics leads is the cost-effective way of your cabling solution.
AZE's 50/125μm OM4 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
Specification
| Connector Type | LC-SC | Polish Type | UPC/UPC |
| Fiber Mode | OM4 50/125μm | Wavelength | 850/1300nm |
| 40G Ethernet Distance | 150m at 850nm | 100G Ethernet Distance | 100m at 850nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
| Fiber Grade | Bend Insensitive | Minimum Bend Radius | 7.5mm |
| Attenuation at 850nm | 3.0 dB/km | Attenuation at 1300nm | 1.0 dB/km |
| Fiber Count | Duplex | Cable Diameter | 2.0mm |
| Cable Jacket | PVC | Polarity | A(Tx) to B(Rx) |
| Operating Temperature | -20~70°C | Storage Temperature | -40~80°C |
How to Order
Options
42U Server Rack Enclosure 600mm x 1070mm w/ Sides Black
1U Rackmount 17inch LCD Console with Integrated 16 port IP KVM Switch(1-Local / 1-Remote Access)
18U 750mm Wide x 600mm Deep IP55 Outdoor Cabinet with 500W Air Conditioner
45U Server Rack Enclosure 600mm x 1070mm w/ Sides Black
1U rackmount basic rack PDU, 120V/15A, (8) NEMA 5-15R outlets
Rack PDU 2G, Metered, Single Phase,ZeroU, 32A, 230V, (36) C13 & (6) C19
Application
The 50/125μm OM4 multimode fiber optic cable is suitable for fast Ethernet, gigabit Ethernet and fiber channel applications, such as in data center, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed, ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications.
- Cross-connect patching
- Backbone application in building
- Termination enclosure for equipment patching
- Equipment to equipment patching
- Supports high-speed multi-channel data, voice & video applications
