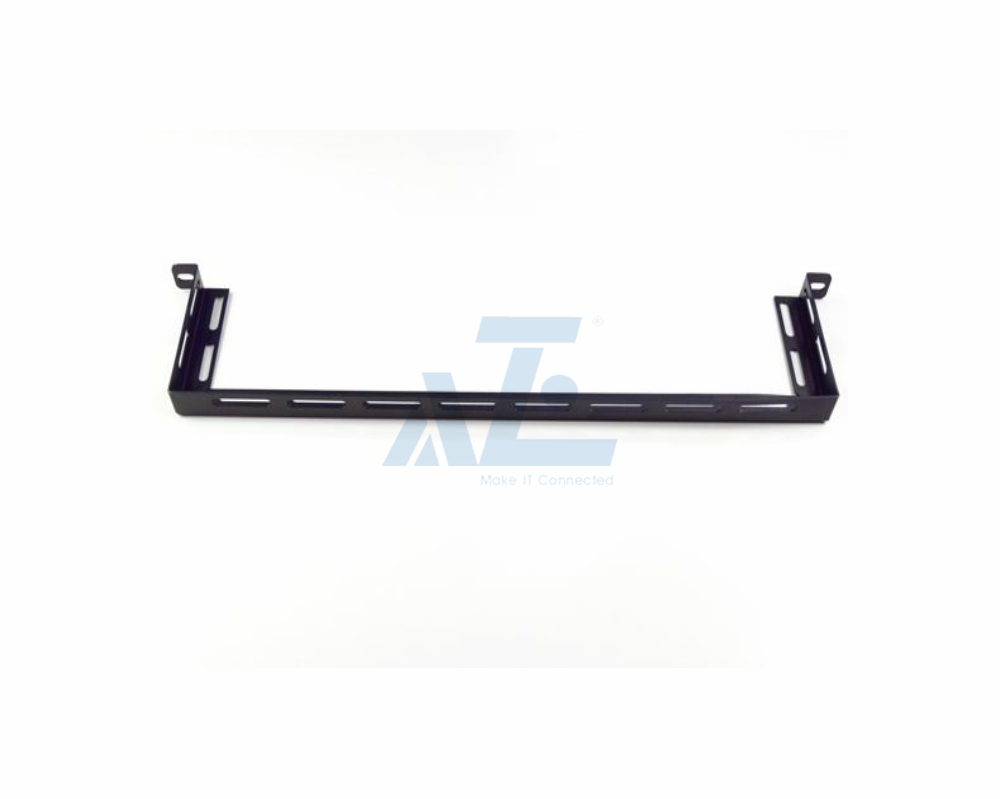

1U Lacing Bar Cable Management with 5 inch offset

Model : RALBAR5INCH

Manage your cables neatly without compromising on space with this 1RU lacing bar designed from premium steel that will only occupy one-third of a rack unit.

Help reduce those sharp bends that can create kinks and possibly damage the integrity of the cables causing signal bleeds. Installing this in your rack will provide you with ample tie points, this will help you reduce the strain on the expensive equipment. By routing the cable out and away from the equipment you also allow for better airflow for passive cooling.

5 inch offset lacing bar
Small and Effective Cable Manager
Made from Durable L Shaped Steel
Plenty of Tie Slots

Compare Quote

1U Lacing Bar Cable Management with 5 inch offset

RALBAR5INCH Features

Key Features
Rack Height	1U
Rack Mounting Width	19"

Features & Benefits

Occupies 1U of rack space
5 inch Deep Horizontal cable management.
Fit standard 19" server racks and cabinets.
Multiple slots along front and side to tie straps and easily manage the cables.
Durable L shaped steel to hold a large number of cable bundles.
Made from premium Steel with black powder coat finish

Specification

Physical
Color	Black
Unit Dimensions (WxDxH)	19.02inches x 1.1inchesx1.77inches
Unit Weight	0.2lbs.
Shipping Dimensions(WxDxH)	19.2inchesx1.2inches x1.87inches
Shipping Weight	0.35lbs.

Certifications
Approvals	EIA/ECA-310-E, RoHS
Safety	CE

Warranty
Standard warranty	1 Year

How to Order

Model	Dimension(H x D)	Description	Compatibility
Model	Dimension(H x D)	Description	Rack Enclosures	Wall Mount Enclosures	2-Post (4-Post) Open Frame Racks
RAMCABLEDUCT1U	1U	1U Horizontal Metal Cable Manager - 16 Slots Duct with Cover	√	√	√
RAMCABLEDUCT2U	2U	2U Horizontal Metal Cable Manager - 16 Slots Duct with Cover	√	√	√
RAPCABLEDUCT1U	1U	1U Horizontal Plastic Cable Manager - Finger Duct with Cover	√	√	√
RAPCABLEDUCT2U	2U	2U Horizontal Plastic Cable Manager - Finger Duct with Cover	√	√	√
RACABLEDUCT1UHD	1U	1U High Capacity Horizontal Cable Manager - T-Finger Duct with Hinged Cover	√	√	√
RACABLEDUCT2UHD	2U	2U High Capacity Horizontal Cable Manager - T-Finger Duct with Hinged Cover	√	√	√
RAFPCABLEDUCT1U	1U	1U Horizontal ALL Plastic Cable Manager - Plastic Duct with Cover	√	√	√
RAFPCABLEDUCT2U	2U	2U Horizontal ALL Plastic Cable Manager - Plastic Duct with Cover	√	√	√
RAFPCABLEDUCT1UDS	1U	1U Horizontal ALL Plastic Cable Manager with Double-Sided - Plastic Duct with Cover	√	√	√
RAFPCABLEDUCT2UDS	2U	2U Horizontal ALL Plastic Cable Manager Double-Sided- Plastic Duct with Cover	√	√	√
RAMCABLERING1U	1U	1U Horizontal Metal Cable Manager - Metal Ring Type	√	√	√
RAMCABLERING2U	2U	2U Horizontal Metal Cable Manager - Metal Ring Type	√	√	√
RAPCABLERING1U	1U	1U Horizontal Plastic Cable Manager - Flexible Ring Type	√	√	√
RAPCABLERING2U	2U	2U Horizontal Plastic Cable Manager - Flexible Ring Type	√	√	√
RACABLEDUCTVRT1U	0U x 6Ft	6-ft. (1.8 m) Vertical Cable Manager - Finger Duct with Cover & Tool-less Mount, 2pcs per Pair	√		√
RACABLERINGVRT1U	0U x 6Ft	6-ft. (1.8 m) Vertical Cable Manager - Flexible Ring Type & Tool-less Mount, 2pcs per Pair	√		√
RACABLETRAY3IN42U	3 inch x 21U	3-inch High Capacity Vertical Cable Manager for 42U 30 in. Wide Server Racks,2pcs per pair	√
RACABLETRAYM24	600mm	Power Cable trough for 24 in. enclosures	√
RACABLETRAYM30	750mm	Power Cable trough for 30 in. enclosures	√
RACABLETRAYN24	600mm	Data cable partition for 24 in. enclosures	√
RACABLETRAYM30	750mm	Data cable partition for 30 in. enclosures	√
RACABLELADDER6IN3M	6 inch x 3M	6 in. Wide Cable Ladder,1.5 meters per section, 2 sections per pair	√
RAMBRUSHVRT6	N/A	Mounting Rails brush strips for 30 in. wide enclosures, qty.6	√
RAMSCHANNEL	N/A	Horizontal cable side channel (18 in. to 30 in. adjustment) for routing cable front-to-back between the standard wide rack mounting rails	√
RALBAR	N/A	19inch Rack Mount L-Shaped Tie Bars	√	√	√
RALBAR2INCH	19"x2"	Lacing Bar Cable Management with 2 inch offset	√	√	√
RALBAR4INCH	19"x4”	Lacing Bar Cable Management with 4 inch offset	√	√	√
RALBAR5INCH	19"x5"	Lacing Bar Cable Management with 5 inch offset	√	√	√
RAWLBAR2INCH	19"x2"	Horizontal Cable Lacing Bars with 2 inch Offset	√	√	√
RAWLBAR4INCH	19"x4”	Horizontal Cable Lacing Bars with 4 inch Offset	√	√	√

***************Note********************

AZE provides a wide range of server rack accessories including airflow management,cable management,rack shelves and rack cooling fans, they are compatablity with rack enclosures, wall mount enclosures, open frame racks and outdoor enclosures.
White (RAL7035) or black(RAL9005) options

Options

Metered-by-outlet Switching Rack PDU,3 Phase,(21) C19 & (3) C19

18U 750mm Wide x 750mm Deep NEMA 4 NEMA 4X Outdoor Server Cabinet Enclosure

25U Adjustable Depth Open Frame 4 Post Server Rack Cabinet

42U Server Rack Enclosure 600mm x 1200mm w/ Sides Black

380V/480V 3 Phase 125A Smart Mining Metered and Switched PDU,(24) C19 Outlet

6U Wall Mount Rack Enclosure Server Cabinet,18 inch Switch-Deep

48U Colocation Server Rack 4 x 10U 600mm Wide x 1070mm Deep Enclosure with Sides Black

18U 30inch Wide x 30inch Deep IP55 Outdoor Enclosure with 500W Air Conditioner

48U Secure Server Rack Data Center Cabinet

Application

The cable manager helps eliminate cable stress for your server rack enclosure cabinet or outdoor cabinet enclosure,which can organize power or data cables within a rack or enclosure.
